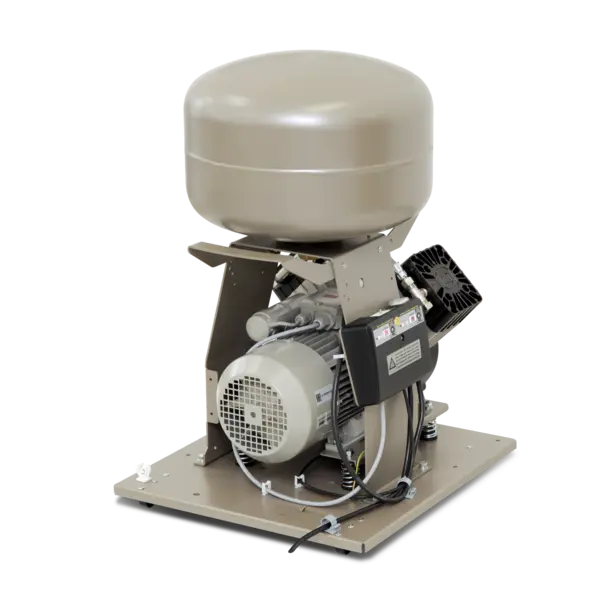

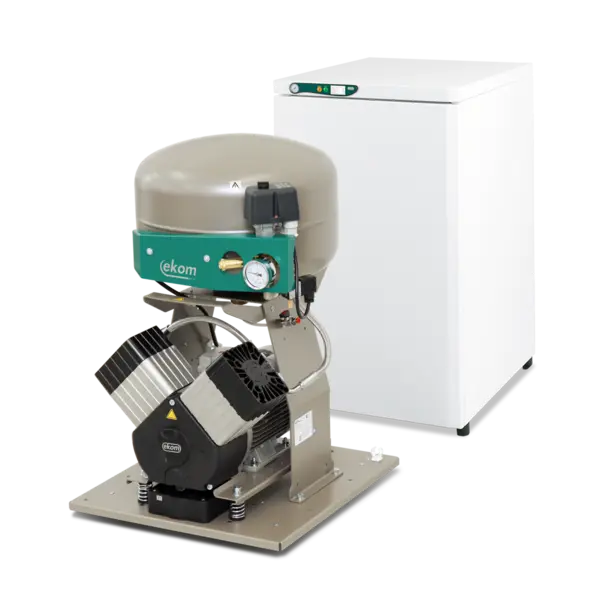

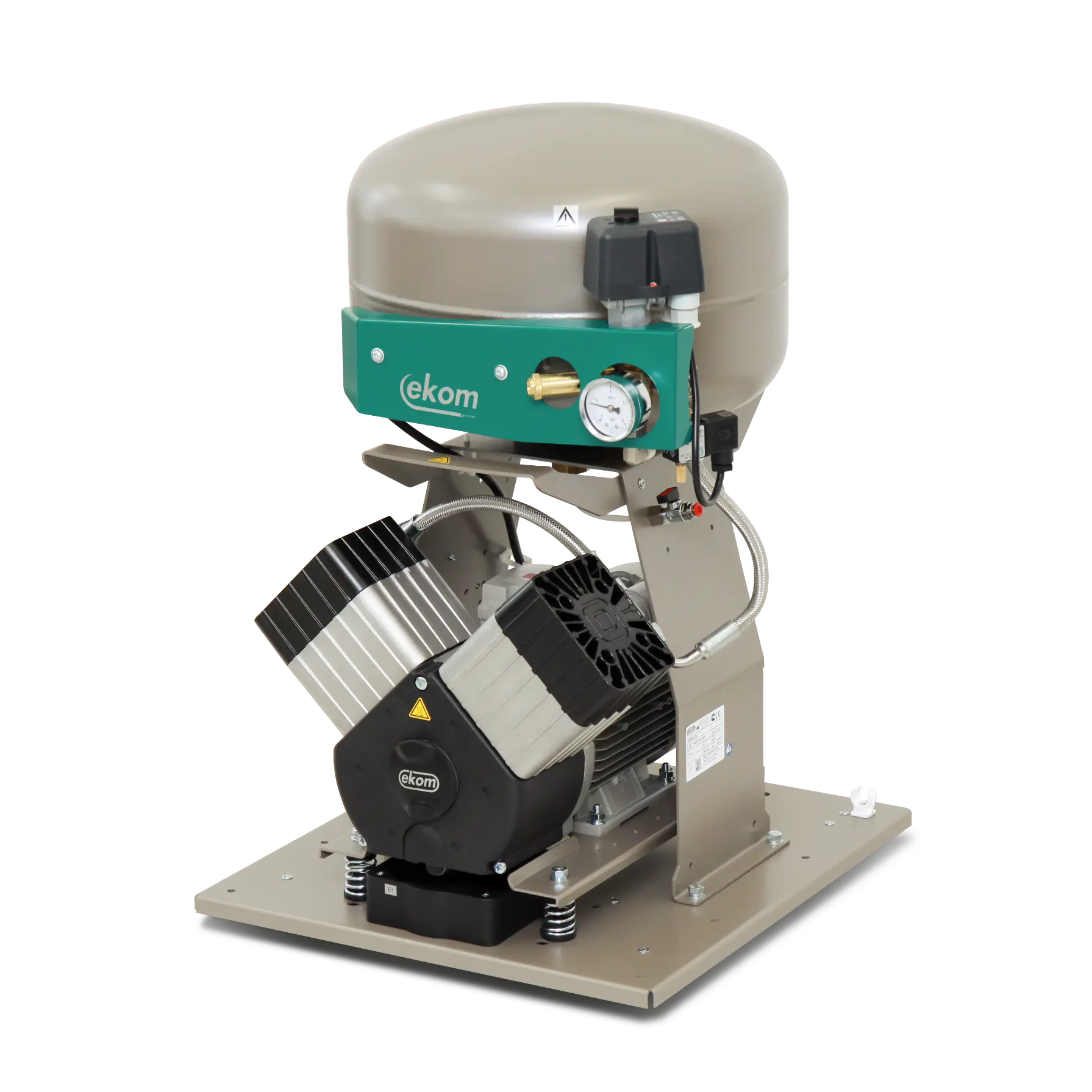

DK50 2V
without noise reduction cabinetDK50 2V/M
without noise reduction cabinet, with dryer- With membrane dryer

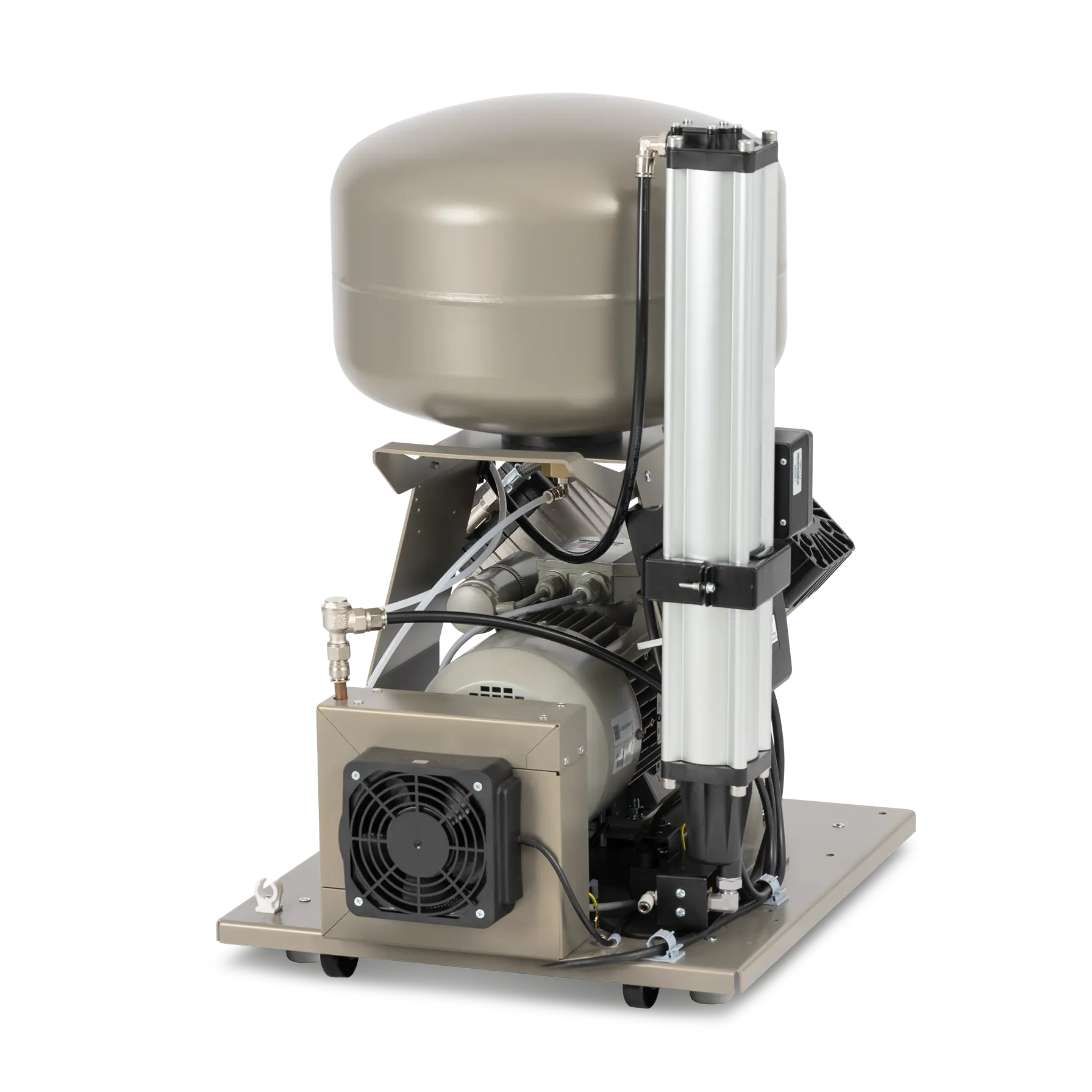

- With adsorption dryer
DK50 2V S
with noise reduction cabinetDK50 2V S/M
with noise reduction cabinet, with dryer- With membrane dryer
- With adsorption dryer
| DK50 2V | DK50 2V S | |
|---|---|---|
|
Photo |
|
|
|
Dryer |
✘ |
✘ |
|
Noise reduction cabinet |
✘ |
✔ |
|
Number of dental units |
2 |
2 |
|
Nominal voltage / frequency |
230 V / 50 Hz 230 V / 60 Hz 115 V / 60 Hz 3x400 V / 50 Hz |
230 V / 50 Hz 230 V / 60 Hz 115 V / 60 Hz 3x400 V / 50 Hz |
|
Motor performance |
1.2 kW 1.1 kW (115 V / 60 Hz) |
1.2 kW 1.1 kW (115 V / 60 Hz) |
|
Air tank capacity |
25 l |
25 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
135 l.min-1 / 6 bar |
135 l.min-1 / 6 bar |
|
Compressor efficiency (working pressure 8 - 10 bar) |
110 l.min-1 / 8 bar |
110 l.min-1 / 8 bar |
|
Duty cycle |
S1 - 100 % |
S1 - 100 % |
|
Noise level |
≤ 67 dB (A) |
≤ 51.5 dB (A) |
|
Weight |
58 kg |
96 kg |
|
Dimensions |
460 x 500 x 720 mm |
560 x 675 x 880 mm |

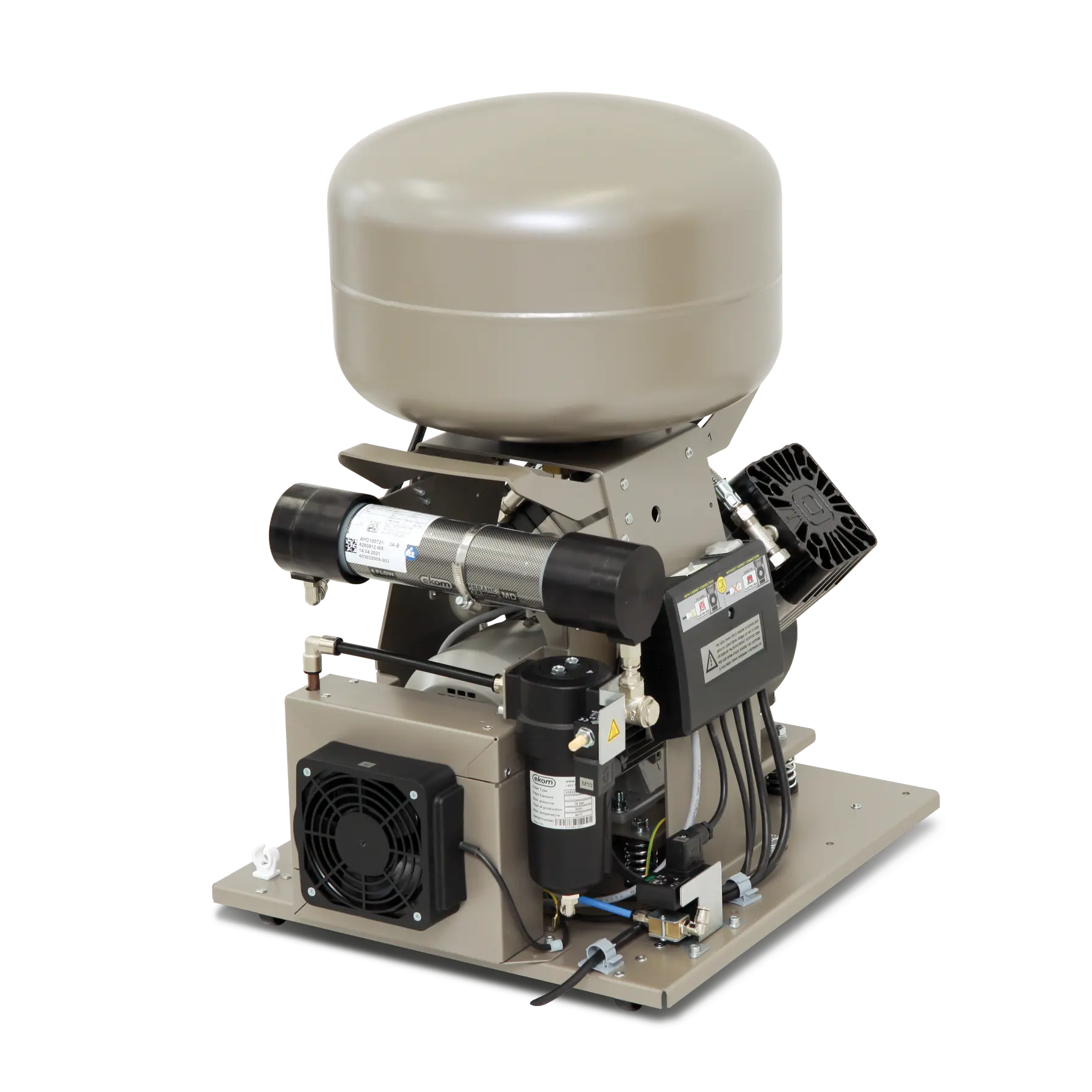

| DK50 2V/M | DK50 2V S/M | |
|---|---|---|
|
Photo |
|
|
|
Dryer |
✔ (MD) |
✔ (MD) |
|
Noise reduction cabinet |
✘ |
✔ |
|
Number of dental units |
2 |
2 |
|
Nominal voltage / frequency |
230 V / 50 Hz 230 V / 60 Hz 115 V / 60 Hz 3x400 V / 50 Hz |
230 V / 50 Hz 230 V / 60 Hz 115 V / 60 Hz 3x400 V / 50 Hz |
|
Motor performance |
1.2 kW 1.1 kW (115 V / 60 Hz) |
1.2 kW 1.1 kW (115 V / 60 Hz) |
|
Air tank capacity |
25 l |
25 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
104 l.min-1 / 6 bar |
104 l.min-1 / 6 bar |
|
Compressor efficiency (working pressure 8 - 10 bar) |
87 l.min-1 / 8 bar |
87 l.min-1 / 8 bar |
|
Duty cycle |
S1 - 100 % |
S1 - 100 % |
|
Degree of air drying (pressure dew point PDP) |
+3 °C at 7 bar +3 °C at 9 bar |
+3 °C at 7 bar +3 °C at 9 bar |
|
Noise level |
≤ 69 dB (A) |
≤ 55 dB (A) |
|
Weight |
63 kg |
101 kg |
|
Dimensions |
460 x 565 x 720 mm |
560 x 675 x 880 mm |

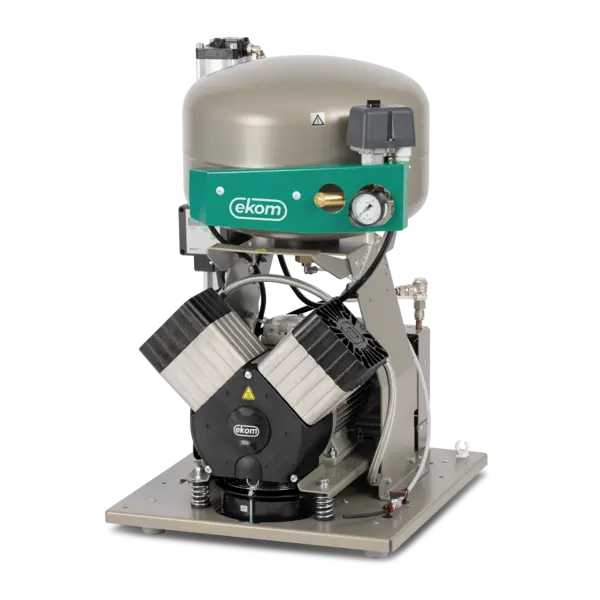

| DK50 2V/M | DK50 2V S/M | DK50 2V/M | DK50 2V S/M | |
|---|---|---|---|---|
|
Photo |
|
|
||
|
Dryer |
✔ (ADM) |
✔ (ADM) |
✔ (ADS) |
✔ (ADS) |
|
Noise reduction cabinet |
✘ |
✔ |
✘ |
✔ |
|
Nominal voltage / frequency |
230 V / 50 Hz |
230 V / 50 Hz |
230 V / 50 Hz |
230 V / 50 Hz |
|
Motor performance |
1.2 kW |
1.2 kW |
1.2 kW |
1.2 kW |
|
Air tank capacity |
25 l |
25 l |
25 l |
25 l |
|
Compressor efficiency (working pressure 6 - 8 bar) |
120 l.min-1 / 6 bar (at PDP -20 °C) 115 l.min-1 / 6 bar (at PDP -40 °C) |
120 l.min-1 / 6 bar (at PDP -20 °C) 115 l.min-1 / 6 bar (at PDP -40 °C) |
135 l.min-1 / 6 bar |
135 l.min-1 / 6 bar |
|
Compressor efficiency (working pressure 8 - 10 bar) |
100 l.min-1 / 8 bar (at PDP -20 °C) 95 l.min-1 / 8 bar (at PDP -40 °C) |
100 l.min-1 / 8 bar (at PDP -20 °C) 95 l.min-1 / 8 bar (at PDP -40 °C) |
110 l.min-1 / 8 bar |
110 l.min-1 / 8 bar |
|
Duty cycle |
S1 - 100 % |
S1 - 100 % |
S3 - 70 % |
S3 - 70 % |
|
Degree of air drying (pressure dew point PDP) |
-40 °C at 7 bar -40 °C at 9 bar |
-40 °C at 7 bar -40 °C at 9 bar |
-20 °C at 7 bar -20 °C at 9 bar |
-20 °C at 7 bar -20 °C at 9 bar |
|
Noise level |
≤ 69 dB (A) |
≤ 55 dB (A) |
≤ 69 dB (A) |
≤ 55 dB (A) |
|
Weight |
69 kg |
110 kg |
61 kg |
99 kg |
|
Dimensions |
460 x 620 x 720 mm |
560 x 720 x 880 mm |
460 x 565 x 710 mm |
560 x 690 x 875 mm |
